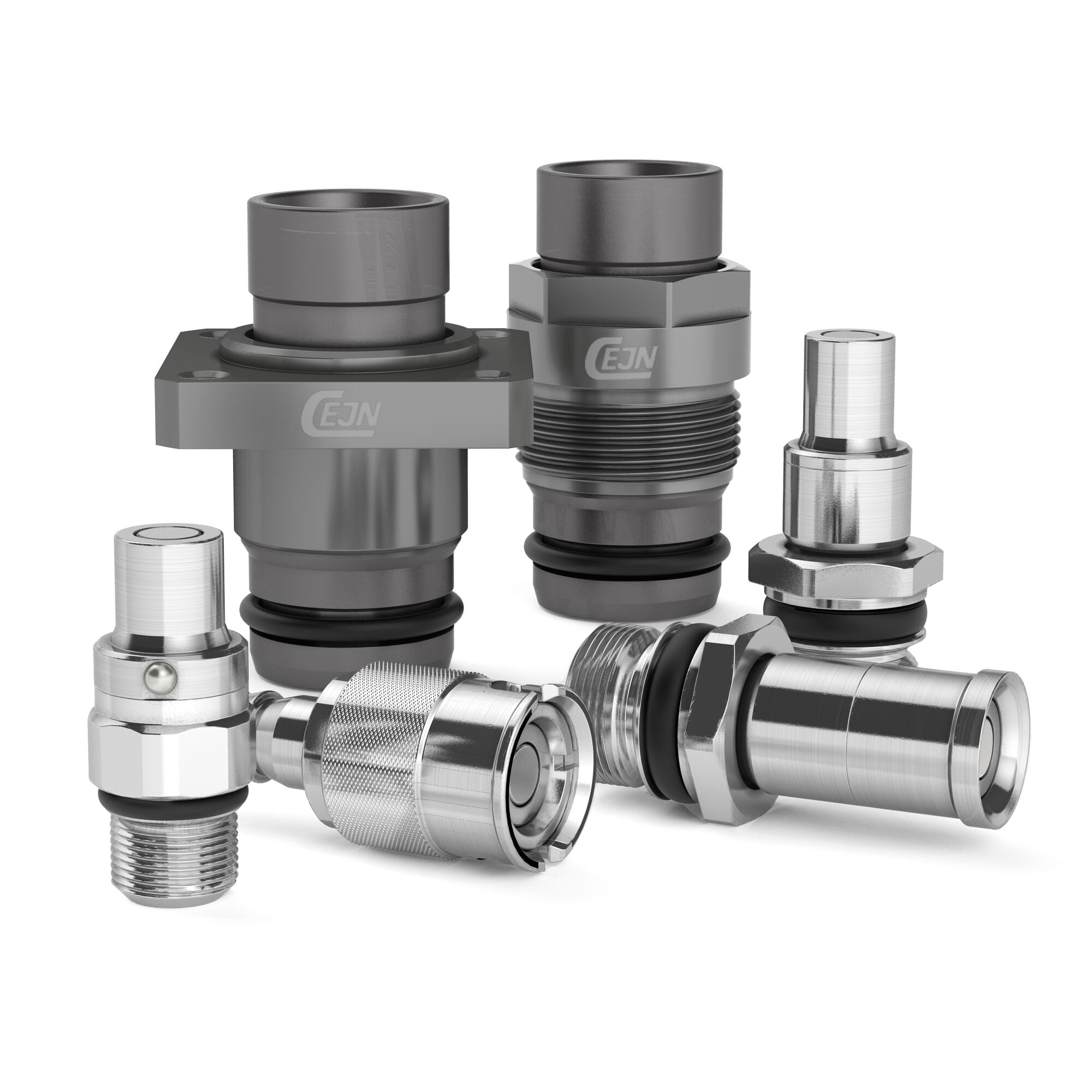

Liquid cooling Flat Face Blind-Mate Non drip Stainless steel
Non-spill auto-couplings for low-pressure fluids
|Nominal flow diameter||3.0 - 19.0 mm (0.1 - 0.7")|
|Max. working pressure||10 - 20 bar (145 - 290 PSI)|
|Min. burst pressure||40 - 80 bar (580 - 1160 PSI)|
|Material coupling||AISI 316L Stainless steel, Nickel-plated brass, Stainless steel AISI 316L, Surface treated aluminum alloy|
Blind-mate no-spill couplings for thermal management
DLC is a specially designed liquid cooling product for use in industrial thermal management systems for data centers, power electronics, digital broadcasting/telecommunications equipment, medical equipment and radar equipment.
Designed for Direct Liquid Cooling
DLC is designed for thermal management applications that require an optimized product for spill-free connection and disconnection. Seals remain intact during connection and disconnection under pressure and within a temperature range of -40° to +80° Celsius (-40° to 176° Fahrenheit).
Special NBR compound increases performance
The special NBR compound for the seal, combined with unique product design, protects the sealing elements from damage, which otherwise is a common problem with standard solutions. It is also possible to connect and disconnect at pressures of up to 10 bar.
Spill-free & self-aligning
The product has a self-aligning feature to enable blind connection, where a combination of thread and panel versions is possible. The unique design protects the seal from damage during connection/disconnection under pressure, to guarantee a tight joint.
Compare our different series of liquid cooling quick couplings for thermal control solutions to find a quick coupler that suits your needs.
Durable and lightweight dry-break quick couplings
Compact dry-break quick disconnect couplings
Valveless quick couplings with unrestricted flow
Dry-break quick couplings for rack installations
|Discover ultraFLOW ▸||Discover Non-drip ▸||Discover Full-Flow ▸||Discover Blind-Mate ▸|
Improved valve shut-off
Low pressure drop
Available with key coding
|Material||Hard anodized aluminum, Stainless steel
Other material available upon request
|Surface treated aluminum
|Available accessories||-||Dust caps, adapters, key coding, safety lock||Adapters||Adapters|
|Application examples||Data centres, power electronics, transportation, medical imaging, industry, renewable energy, broadcasting, radar equipment||Data centres, power electronics, transportation, medical imaging, industry, renewable energy, broadcasting, fluid transfer, chemical transfer||Power electronics, renewable energy||Data centres, power electronics, medical imaging, electric industrial vehicles, renewable energy, radar equipment|
