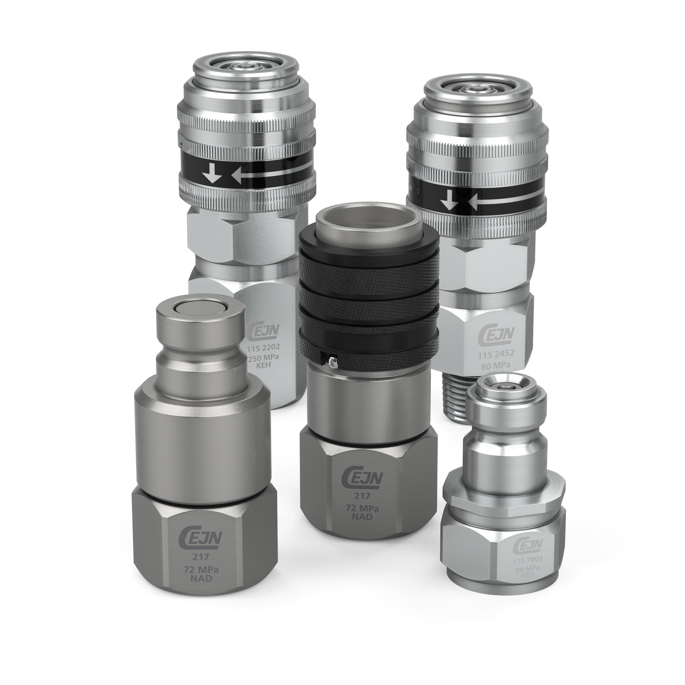

UHP flat-face couplings, high-flow

Safety Lock

High-flow flat-face couplings for ultra high-pressure hydraulics

Technical data

Nominal flow diameter (mm) 4, 6.3 mm
Max working pressure (MPa) 72 - 80 MPa
Material coupling Steel hardened (Zinc)

Small in size but mighty in performance

The High-Flow hydraulic High-pressure quick connect couplings are flat-face couplings with small outer dimensions but mighty performance. That makes them particularly suitable for hydraulic tools with high-flow requirements.

  • High ratio working pressure vs flow performance

  • Flat-face design

  • Non-drip on connection and disconnection
  • Safety locking included

  • One-hand operated

  • Compact design



Configure a high-pressure hydraulic hose kit

Configure and order hydraulic hose assemblies with the easy-to-use hose configurator for ultra high-pressure hydraulic hose kits. With the configurator you can easily specify hose fittings, hydraulic quick couplings, nipples and accessories according to your specifications.

Start a configuration




One-hand-to-connect

The nipple is pushed into the coupling and is locked automatically. The locking sleeve does not need to be manually positioned. Unique automatic safety function eliminates accidental disconnection. Turn the locking sleeve 30° and then pull backwards to release. The Flat-Face design ensures non-drip disconnection




Dust caps included as standard to avoid contamination

Pollution in a hydraulic system can lead to damage and costly machine downtime. It can also prevent the quick coupling from being fully and securely connected. Therefore, all couplings and nipples are fitted with dust caps as standard, which should always be attached and joined together when the coupling and nipple are in use. The slim design will twist around the coupling to avoid tangling.




CEJN Metal Seal (CMS)

CEJN Metal Seal is the optimum and recommended sealing method developed to be a safe and reliable seal even at extremely high pressures. Due to the smaller diameter and position of CMS, stress is kept to a minimum. In the unlikely event of leakage, the oil pressure will be dispersed within the coupling without any danger to the operator.




Safety and Knowledge Since 1955

CEJN has been focused on designing safe and reliable products since day one. Today we have quick-connect hydraulic couplings up to 58000 PSI/4000 bar/400 MPa. This makes us world leaders and entails a responsible commitment to development to which CEJN is deeply dedicated.




Certified assembly by your local CEJN High-Pressure Center

The CEJN High-Pressure Centers are located around the world for closer proximity to our markets and are all staffed by certified application experts. Each center features a hose crimping facility that assembles high-pressure hose kits to customer specifications. Every set is checked and measured before delivery for safety and performance to eliminate any risk of failure.
