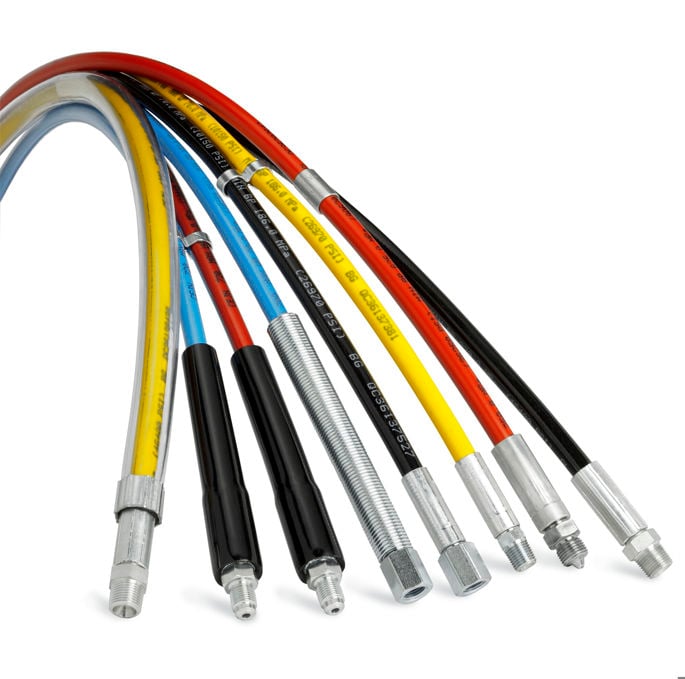

UHP hoses

Ultra high-pressure hydraulic hoses and fittings

Technical data

Max. working pressure 70 - 400 MPa
Min. bend radius 25 - 230 mm (1.0 - 9.1")

Ultra-high safety hoses for ultra high-pressure hydraulics

CEJN Ultra High-Pressure hoses for hydraulics are spiralized steel reinforced polymer that has ultra-high working pressure with maintained flexibility. Its low volumetric expansion gives fast response time in hydraulic systems while smooth inner bored provides a minimized pressure drop. The small outside diameter makes the hose ideal for tight routing. Each assembled kit is cut to your preferred length, fitted with one of our wide range of fittings and high-pressure couplings.


Hose configurator for ultra high-pressure hose kits with end connections, quick couplings and nipples

Configure a high-pressure hydraulic hose kit

Configure and order hydraulic hose assemblies with the easy-to-use hose configurator for ultra high-pressure hydraulic hose kits. With the configurator you can easily specify hose fittings, hydraulic quick couplings, nipples and accessories according to your specifications.

Start a configuration



CEJN Identification System (CiS)

CiS is a tracking solution in which every hose kit is chipped and has an individual marking and traceability based on Near Field Communication technology. This means that you can check the technical data for the hose kit and can also view an updated history log: when the hose kit was first and most recently pressure-tested and when it is time to take it out of service.



Safety and Knowledge Since 1955

CEJN has been focused on designing safe and reliable products since day one. Today we have quick-connect hydraulic couplings up to 58000 PSI/4000 bar/400 MPa. This makes us world leaders and entails a responsible commitment to development to which CEJN is deeply dedicated.



CEJN High-Pressure Center

The CEJN High-Pressure Centers are located around the world for closer proximity to our markets and are all staffed by certified application experts. Each center features a hose-crimping facility that assembles high-pressure hose kits to customer specifications. Every set is checked and measured before delivery for safety and performance to eliminate any risk of failure.



Never underestimate the dangers of working with ultra high-pressure hydraulics


Potential Dangers with Ultra High-Pressure Hydraulic Applications load movie
Potential Dangers with Ultra High-Pressure Hydraulic Applications

Manuals and brochures

Ultra High Pressure Hose

Ultra High Pressure Hose

User manual for the application of hose assemblies for ultra high-pressure hydraulic systems

Care and Use of High Pressure Hose

Care and Use of High Pressure Hose

Maintenence advice for the high-pressure hose range.

Check with an authorized CEJN distributor for availability and prices

Find Distributor



How to work safely with Ultra High-Pressure Hydraulics



Download Safety Guidelines
