Hydraulic Products

Press-Check / 359 - Screw to Connect Pressure Testing (ISO 15171-2)

Nipples

Nipples

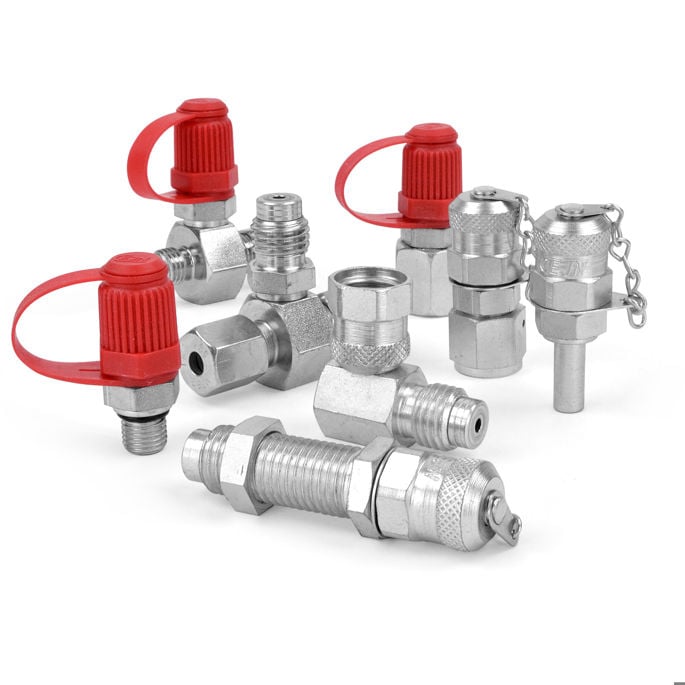

Test-point nipples for the Press-Check system. The nipples are available with plastic or metal dust caps and comes in four different sealing types; metal to metal seal, sealing by fitted ring, sealing by thread and sealing by O-ring.

Nipples with 24° Sealing Cone

Nipples with 24° Sealing Cone

Test point nipples for the Press-Check system with 24° sealing cone. The nipples are available in light and heavy designs according to DIN 3865. They come equipped with plastic or metal dust caps.

Nipples with T-Connection

Nipples with T-Connection

Test point nipples for the Press-Check system with T-connections. The nipples are available in light and heavy designs according to DIN 2353. They come equipped with plastic or metal dust caps.

Nipples with Female Swivel

Nipples with Female Swivel

Test point nipples for the Press-Check system with female swivel JIC 37° - SAE J514. The nipples come equipped with plastic or mertal dust caps.

Nipples with Female Swivel

Nipples with Female Swivel

Test point nipples for the Press-Check system with female swivel. The nipples come equipped with plastic or metal dust caps.

Nipples with Bulkhead Connections

Nipples with Bulkhead Connections

Test point nipples for the Press-Check system with metric thread bulkhead connections. The nipples come equipped with plastic or metal dust caps.

Nipples with Bulkhead Connections DIN 3861

Nipples with Bulkhead Connections DIN 3861

Test point nipples for the Press-Check system with bulkhead connections according to DIN 3861. The nipples come equipped with plastic or metal dust caps.

Nipples with Bulkhead Connections SAE J514

Nipples with Bulkhead Connections SAE J514

Test point nipples for the Press-Check system with bulkhead connections according to SAE J514. The nipples come equipped with plastic or metal dust caps.

Stand Pipe Nipples

Stand Pipe Nipples

Test point nipples for the Press-Check system with stand pipe connections. The nipples come equipped with plastic or metal dust caps.

Gauge connections

Gauge connections

Gauge connections for the Press-Check system. They are available in a coupling version and two thread versions; one swivel connection and one bulkhead connection. The pressure gauge coupling is available in two version one free flow and one with pressure damper.

Coupling with 90° Elbow Connection

Coupling with 90° Elbow Connection

Coupling with 90° elbow connection for the Press-Check system.

Pressure Gauges

Pressure Gauges

The pressure gauges of the Press-Check system are encased in stainless steel AISI 304 and filled with glycerin. The Snap-Check standard range features a combined bar/PSI scale within an accuracy of ±1.6 percent of full scale.

Accessories

Accessories

Accessories for the Press-Check monitoring system. Gauges covers and dust caps.

Hose DN2

Hose DN2

Extremely flexible, polyamide, high-pressure hose assemblies for the Press-Check system. Included in the hose range is also a wide range of fittings.

Hose DN4

Hose DN4

Extremely flexible, polyamide, high-pressure hose assemblies for the Press-Check system. Included in the hose range is also a wide range of fittings.
