UHP T-connection couplings
CEJN’s Series 116 T-Connection is a lightweight, one-piece coupling and nipple combination for making serial connections on high-pressure hydraulic tools, such as bolt tensioners and cylinders. Replacing traditional porting blocks that can require up to 13 components with at least five different part numbers, the compact T-connection minimizes risk for leakage by reducing potential leak points. A modified seal enables the nipple valve to handle dynamic load while disconnected, without the risk of seal damage. The tested, pre-assembled connection comes ready for installation, thereby saving assembly time and costs.
Technical data
| Nominal flow diameter (mm) | 2.5 mm |
| Max working pressure (MPa) | 150 MPa |
| Material coupling | Steel hardened (Zinc) |
Simplifying simultaneous connections

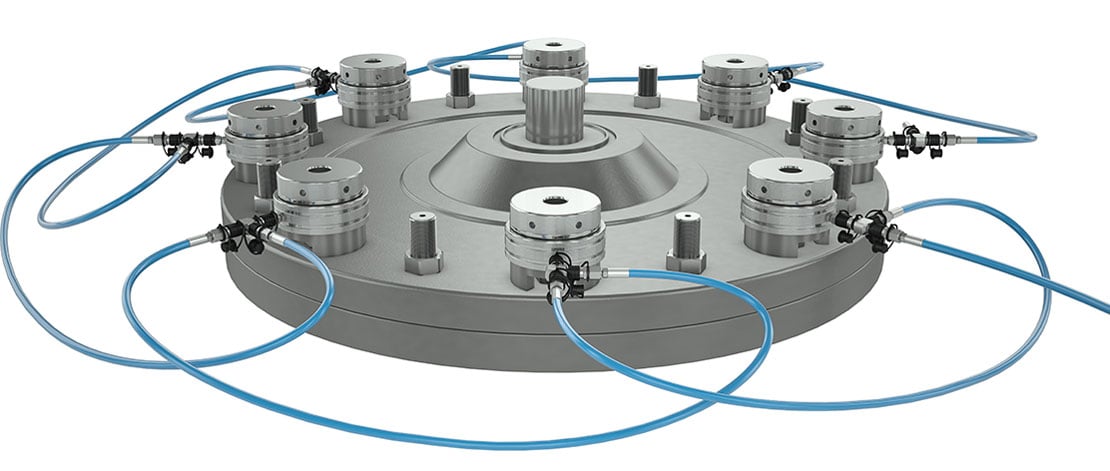

The Series 116 T-connection is developed for bolt tensioners and other applications requiring serial or simultaneous connections. The T-connection replaces the traditional porting block solution with one single component, making installation easier and minimising the risk of leaks.
The T-connection is more compact than traditional solutions. The valve in the nipple can handle dynamic loads when disconnected, and a modified seal ensures there is no risk of seal damage. This allows for a safe, disconnected nipple at the end of a serial connection, eliminating the need for additional components like plugged couplings.
Every unit is fully assembled and leak-tested by CEJN before delivery saving both time and money. It is ready to use on delivery for maximum productivity and a hassle-free setup.
- Less risk of leakage
Replaces porting block solutions with a single, secure component. - Compact design
Saves space and simplifies installation.
- Time and cost savings
Pre-assembled, leak-tested, and ready for immediate use. - Simplified procurement
Fewer components and one supplier for streamlined ordering and delivery

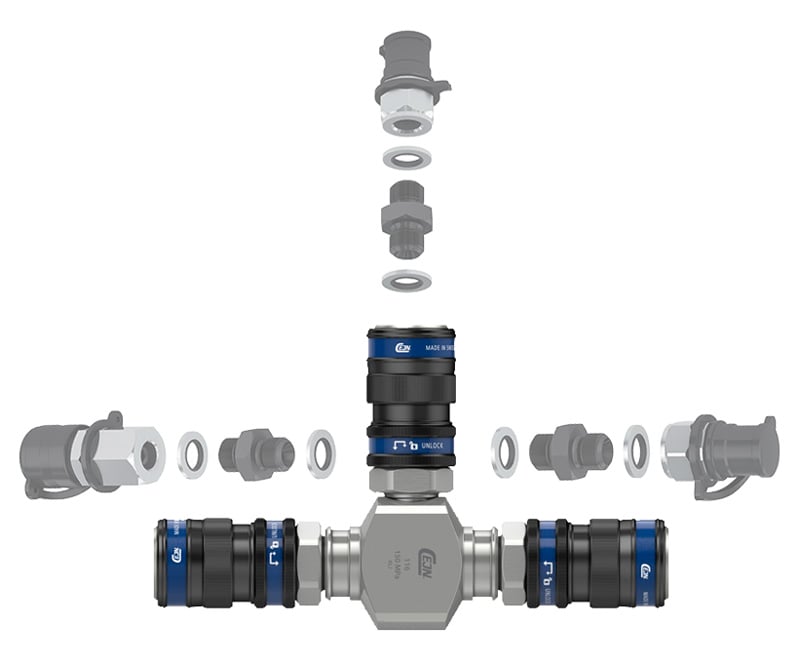

From complexity to efficiency - one component instead of 13
Traditionally, supplying high-pressure hydraulic tools from a single pressure source requires multiple components, including porting blocks, adapters, seals, nipples, and couplings. While effective, this setup is complex, bulky, and increases the risk of leaks.
The Series 116 T-Connection eliminates this complexity with a single, compact component. This significantly reduces size and weight, saves space and simplifies assembly, making the entire setup easier to handle. With fewer components, there are fewer potential leakage points, improving reliability and performance.
