UHP hose kits
Pre-assembled ultra high-pressure hydraulic hose kits with fittings
Technical data
| Nominal flow diameter | 4.8 - 6.4 mm (0.2 - 0.3 ") |
| Max. working pressure | 72 - 180 MPa |
| Min. burst pressure | 288 - 450 MPa |
| Min. bend radius | 70 - 130 mm (2.8 - 5.1") |
| Description | 72MPa, DN6, red hose kits, 100MPa, DN 6, black hose kits, 150MPa, DN 5, blue hose kits, 180MPa, DN 5, blue hose kits |
| Special Feature | CiS safety tag |

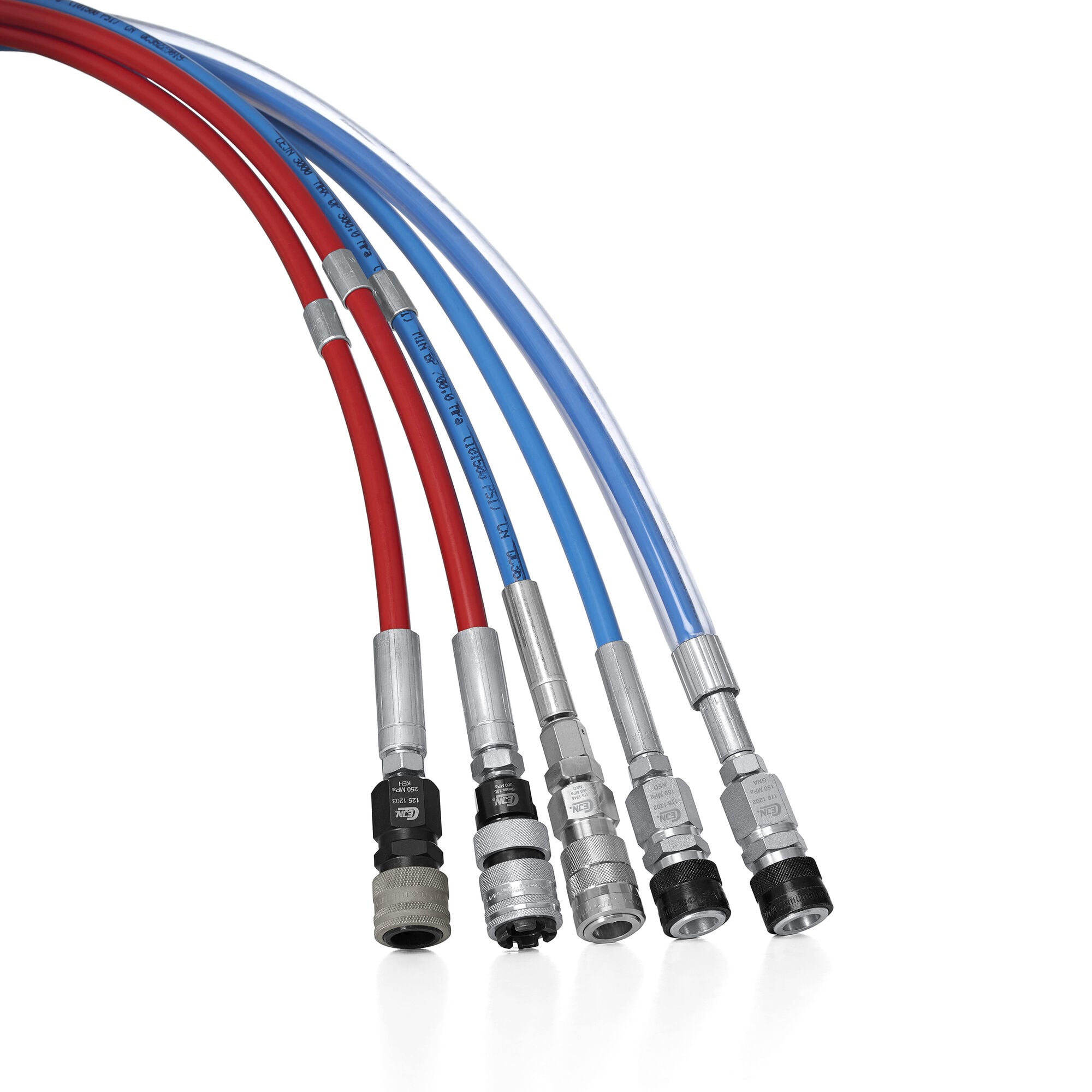

Ultra-high safety hoses for ultra high-pressure hydraulics
CEJN Ultra High-Pressure hoses for hydraulics are spiralized steel reinforced polymer that has ultra-high working pressure with maintained flexibility. Its low volumetric expansion gives fast response time in hydraulic systems while smooth inner bored provides a minimized pressure drop. The small outside diameter makes the hose ideal for tight routing. Each assembled kit is cut to your preferred length, fitted with one of our wide range of fittings and high-pressure couplings.
Configure a high-pressure hydraulic hose kit
Configure and order hydraulic hose assemblies with the easy-to-use hose configurator for ultra high-pressure hydraulic hose kits. With the configurator you can easily specify hose fittings, hydraulic quick couplings, nipples and accessories according to your specifications.
CEJN Identification System (CiS)
CiS is a tracking solution in which every hose kit is chipped and has an individual marking and traceability based on Near Field Communication technology. This means that you can check the technical data for the hose kit and can also view an updated history log: when the hose kit was first and most recently pressure-tested and when it is time to take it out of service.
Safety and Knowledge Since 1955
CEJN has been focused on designing safe and reliable products since day one. Today we have quick-connect hydraulic couplings up to 4000 bar/400 MPa. This makes us world leaders and entails a responsible commitment to development to which CEJN is deeply dedicated.
Certified assembly by your local CEJN High-Pressure Centre
The CEJN High-Pressure Centres are located around the world for closer proximity to our markets and are all staffed by certified application experts. Each center features a hose crimping facility that assembles high-pressure hose kits to customer specifications. Every set is checked and measured before delivery for safety and performance to eliminate any risk of failure.
Never underestimate the dangers of working with ultra high-pressure hydraulics
Potential Dangers with Ultra High-Pressure Hydraulic Applications
Manuals and brochures
Ultra high-pressure hydraulic hose kits
Ultra High-Pressure Hose
CEJN Identification System
Care and Use of High Pressure Hose
Maintenence advice for the high-pressure hose range.
