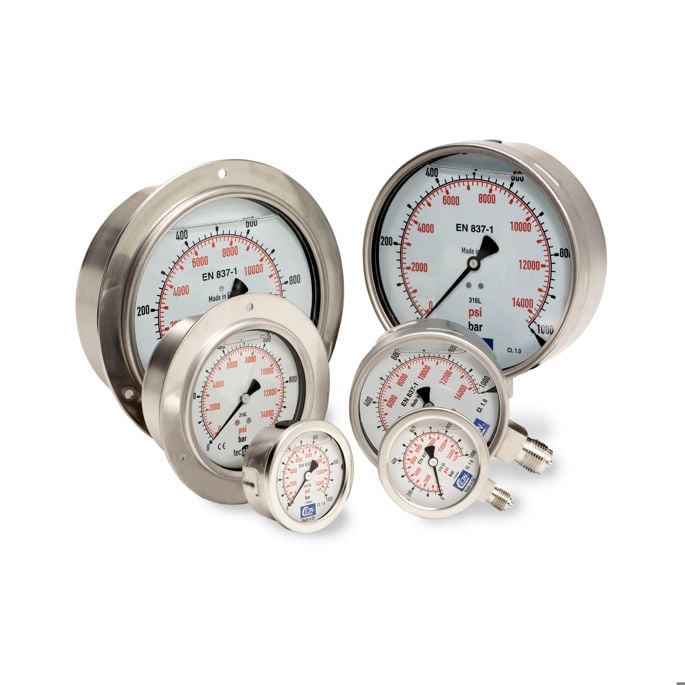

Pressure Gauges

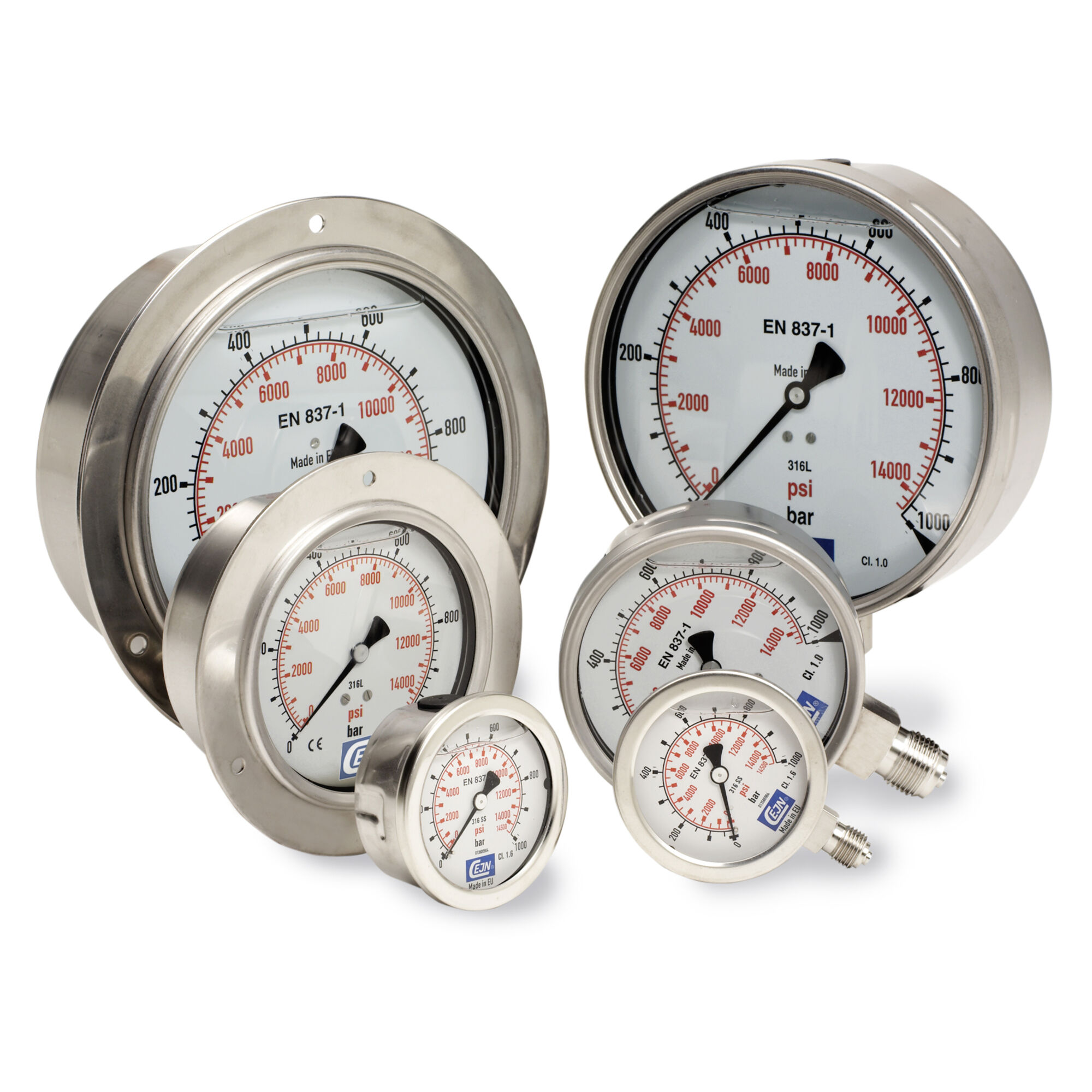

Bottom and panel mounted hydraulic pressure gauges

Technical data

Material Stainless steel AISI 316 and AISI 304. Dial face of aluminum with black graduations. Pointer of aluminum or stainless steel. Gasket of polychloroprene. Window of plexiglass.
Units PSI, MPa
Protection class IP 65
Max rec. working pressure 75% of the full scale range

Instruction videos

High-pressure gauges - Transit screw removal
load movie
High-pressure gauges - Transit screw removal
