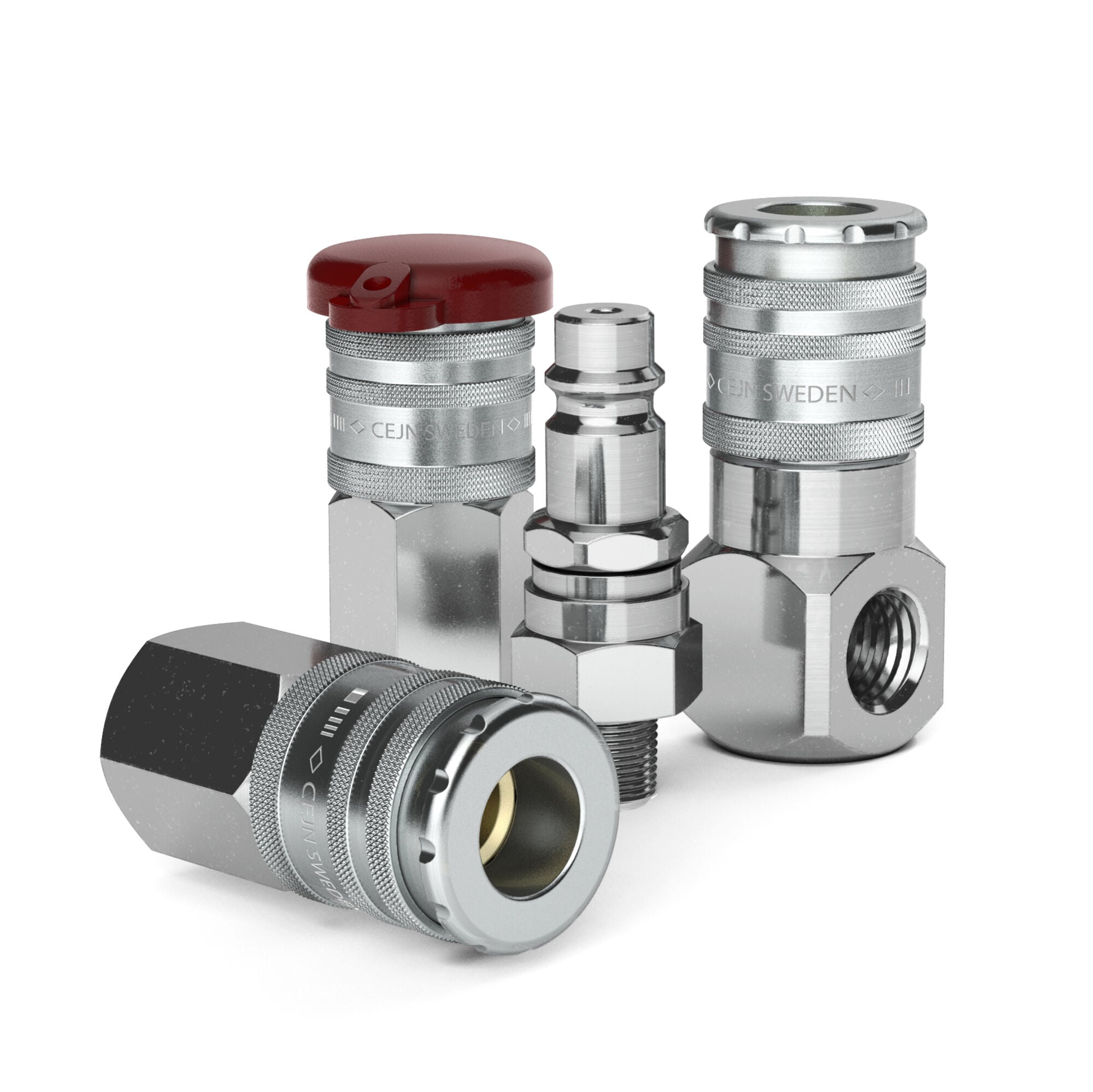

Snap-Check test point system

Connection under pressure

Quick connect hydraulic pressure testing nipples

Technical data

Nominal flow diameter 1.5 - 2.0 mm (0.1")
Connection under pressure 30.0 MPa

The quick connect monitoring system

The Snap-check monitoring system identifies your operating pressure without the need for a permanently installed gauge. The thermoplastic, high-pressure hose enables you to monitor pressures from remote locations and connect gauges in the most confined areas.

Applications include mobile equipment, injection molding machines, oil and gas equipment, marine vessels and production machinery. With a maximum working pressure of up to 600 bar (8700 PSI) Series 358 offer you products with extra-long and leak-free service. In addition, it gives you unsurpassed reliability. The Snap-Check test point can quickly and easily be connected with the machine running with pressure up to 300 bar (4350 PSI). In the Snap-Check range you have test point nipples and couplings, mini-hose and gauges.

  • Up to 600 bar
  • Monitor pressures from remote locations
  • Quick connection while machine is running
  • Long and leak-free service-life
