Pneumatic Products

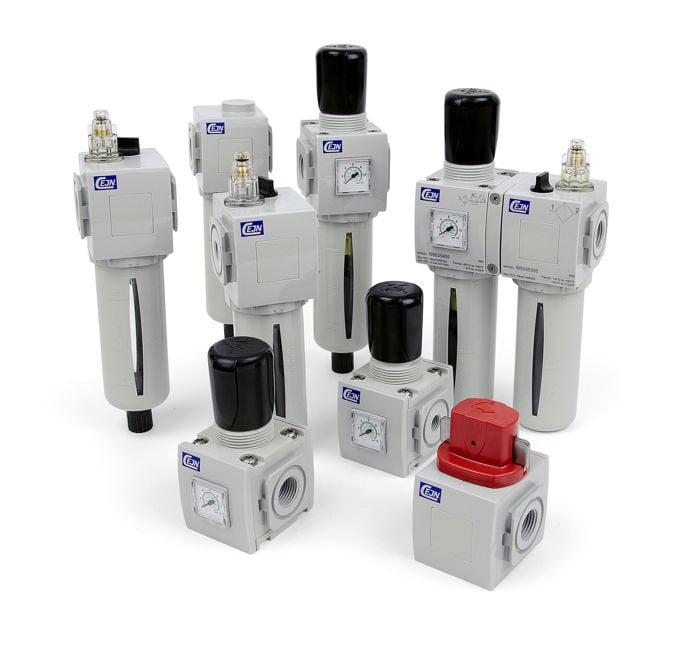

FRL Products

To get the most out of your compressed air tools, equipment and machinery, one key ingredient is clean air. Using FRL products, also called air preparation systems, will keep your air supply in tip-top condition. CEJN’s FRL range of filters, regulators, filter-regulators and lubricators are easy to assemble and maintain and can be top or side-mounted. Designed to provide constant high-quality air to your compressed air system, our air preparation units are available as stand-alone components or complete system packages.
  • Filter/Regulator Model 651

    Model 651 combines the functions of both a filter and a regulator. Model 651 features a bowl capacity of 4cl, maximum airflow of 2300 l/min. Controlled pressure of 0.5 to 10 bar and a filtration capacity of between 5 and 25 μm.

  • Filter/Regulator Model 652

    Model 652 combines the functions of both a filter and a regulator. Model 652 features a bowl capacity of 11cl, maximum airflow of 5500 l/min, controlled pressure of 0.5 to 10 bar and a filtration capacity of between 5 and 25 μm.

  • Filter/Regulators Model 160

    Model 160 Filter/Regulators feature a bowl capacity of 50 cl, max air flow of 13 000 l/min, controlled pressure of 0.5 to 12 bar and a filtration capacity between 5 to 30 µm.

  • Filter Model 651

    Model 651 is our smallest filter. To effectively filter the air, it features a 4 cl bowl capacity, a maximum flow of 1400 l/min and a filtration capacity of between 0.01 and 25 μm.

  • Filter Model 652

    Model 652 is our mid-sized filter. To effectively filter the air, it features an 11 cl bowl capacity, a maximum flow of 3700 l/min and a filtration capacity of between 0.01 and 25 μm.

  • Filters Model 160

    Model 160 filters is the largest of three sizes and has a 50 cl bowl capacity, a max flow of 13 500 l/min and a filtration capacity between 5 to 30 µm.

  • Lubricator Model 651

    CEJN offers three available lubricator sizes, to maintain correct oil flow. Model 651 is our smallest version. It has a maximum flow of 1900 l/min.

  • Lubricator Model 652

    CEJN has three available lubricator sizes, to maintain correct oil flow. Model 652 is our medium-sized version. It has a maximum flow of 5100 l/min.

  • Lubricators Model 160

    Model 160 Lubricators feature an oil capacity of 36 cl and a max air flow of 15 500 l/min (minimum flow for lubrication startup is 90 l/min). The model is available with G 3/4" and G1" threads.

  • Regulator Model Mini

    CEJN offers four regulators; Model Mini is our smallest. It features a compact design with a maximum airflow of 650 l/min, maximum inlet pressure of 12 bar and controlled pressure of 0.5 to 10 bar. Available with G 1/8" and G 1/4" threads.

  • Regulator Model 651

    Model 651 features a max air flow of 2000 l/min, max inlet pressure of 16 bar and a controlled pressure of 0.5 to 10 bar. The model is available with G 1/4" thread.

  • Regulator Model 652

    Model 652 features a max air flow of 7000 l/min, max inlet pressure of 16 bar and a controlled pressure of 0.5 to 10 bar. The model is available with G 3/8" and G 1/2" threads.

  • Regulators Model 160

    Model 160 regulators features a max air flow of 13.000 l/min, max inlet pressure of 16 bar and a controlled pressure of 0.5 to 12 bar. The model is available with G 3/4" and G 1" threads.

  • Air treatment units Model 651

    Model 651 is our smallest FRL combo offering a working pressure of up to 16 bar. The all-in-one FRL system from CEJN is available in three sizes.

  • Air treatment units Model 652

    Model 652 is our medium-sized FRL combo, offering a working pressure of up to 16 bar. This all-in-one FRL system from CEJN is available in three sizes.

  • FRL Systems Model 160

    Model 160 FRL systems features three different sets; filter/regulators + lubricators, filter/regulator + porting block + lubricator, filter + regulator + lubricator. The sets are available with G 3/4" and G 1" threads.

  • FRL Accessories and Spare Parts

    Large range of accessories and spare parts for the CEJN air-treatment range.
